17x17V-Wide and Slim Wired

DR Detectors Systems

17x17V-Wide and Slim Wired

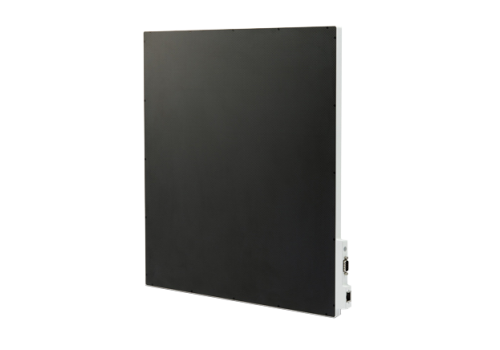

Wide and Slim Wired Flat Panel Detector

Superior Image Quality

High MTF & DQE
Pixel Pitch : 140 ㎛

Easy Upgrade

Anytime™ :
Vieworks' proprietary AED (Automatic Exposure Detection)
technology with reliable performance
ISO 4090 : same size as a film/CR cassette

Better Usability

Light and Slim Design : 4.5 kg
Fast Image Acquisition Time : 2 s
Short Booting Time : 15 s

*Stable and reliable AED (Automatic Exposure Detection)
Anytime^TM proprietary AED function with reliable performance (Supporting line trigger mod)

*Fast data communication Speed
Short booting time: 15 seconds

*Convenient usability
DxWorks viewer software program operated under Windows^TM

Model Name	FXRD-1717VA / FXRD-1717VB
Technology	a-Si TFT with photodiode
Scintillator	Gd2O2S:Tb / CsI:Tl
Pixel Pitch	140 ㎛
Spatial Resolution	3.5 lp/㎜
Image Size	17" x 17" (43.0 ㎝ x 43.0 ㎝)
Pixels	3072 x 3072 pixels
Data Interface	Gigabit Ethernet
X-ray Generator Interface	Line trigger: DR trigger Mode Auto trigger: AED Mode
Degree of Protection Against Ingress of Water	IPX0
Weight	4.5 kg
X-ray Voltage Range	40 - 150 kVp
Operating Environment	10℃ to 35℃ 30 % to 85 % RH (non-condensing)
Grayscale	16 bit
Image Acquisition Time	2 s
Recommended Cycle Time	15 s
Dimensions (H X W X D)	46.0 ㎝ x 46.0 ㎝ x 1.5 ㎝
Power	DC 24V, 0.6A
